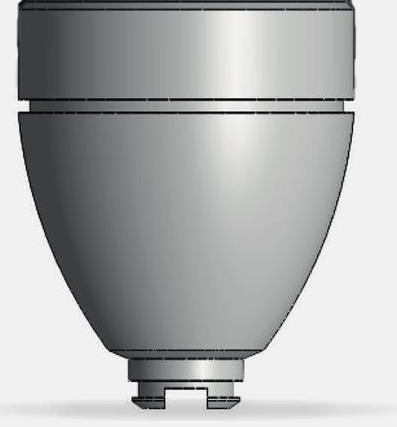

Shaped Charge

Shaped Charge has temperature resistance and deep penetration for use in Hollow Carrier Gun System Assembly. Other types of Shaped Charges consist of Big Hole Shaped Charge and Super Deep Penetrating Shaped Charge are also available.

...
...

OTHER TYPES OF SHAPED CHARGES CAN BE DESIGNED AND MANUFACTURED BASED ON CUSTOMER REQUEST.

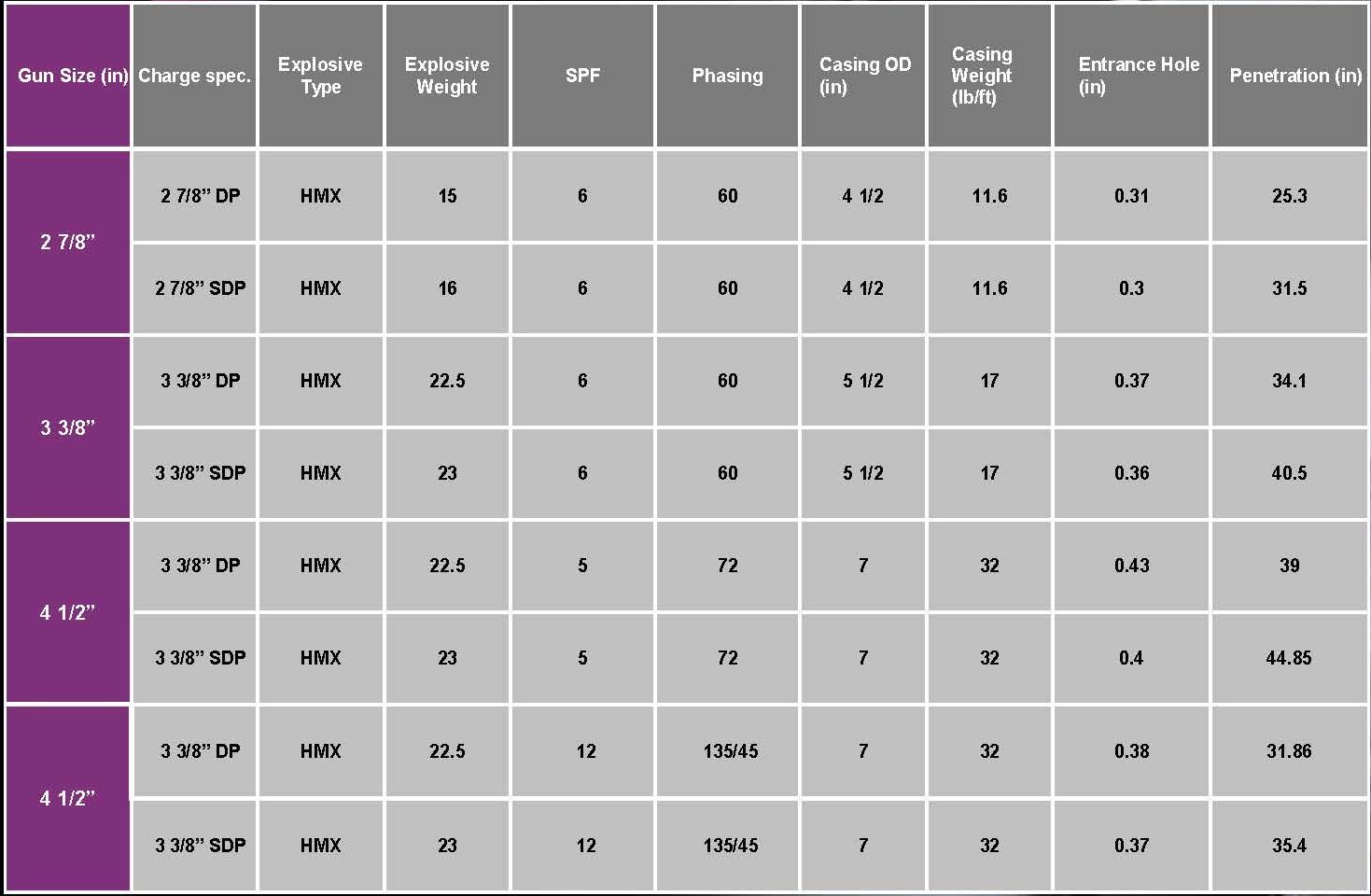

  • ALL TESTS ARE BASED ON AP RP 19B, THEREFORE TOTAL PENETRATION DEPTH AND CASING OR TUBING HOLE DIAMETER ARE MEASURED BASED ON API 19B SECTION

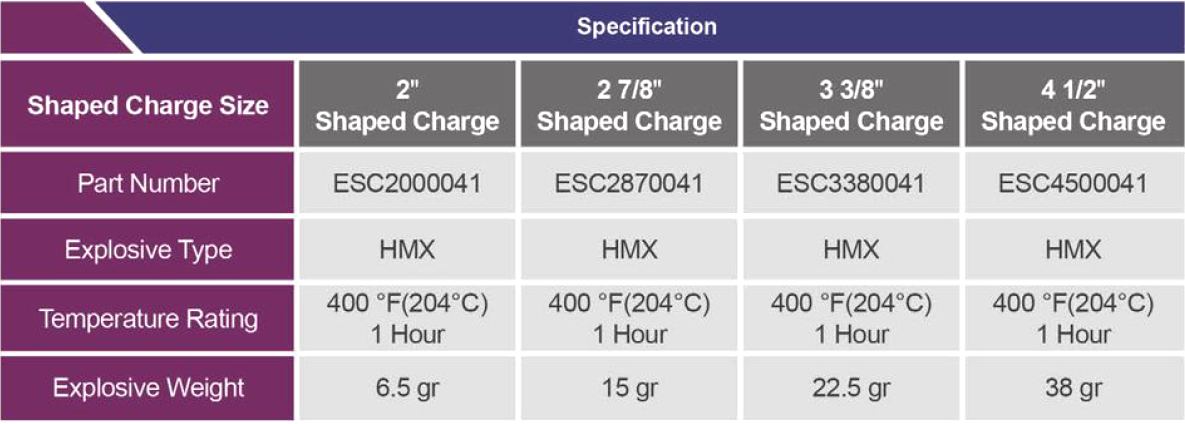

  • IN THE TEMPERATURE TEST, THE SHAPED CHARGE (HMX TYPE) SHOULD BE KEPT AT 400°F FOR 1 HOUR, AND THEN, TO ENSURE PROPER PERFORMANCE, THE SHOOTING TEST WILL BE DONE.

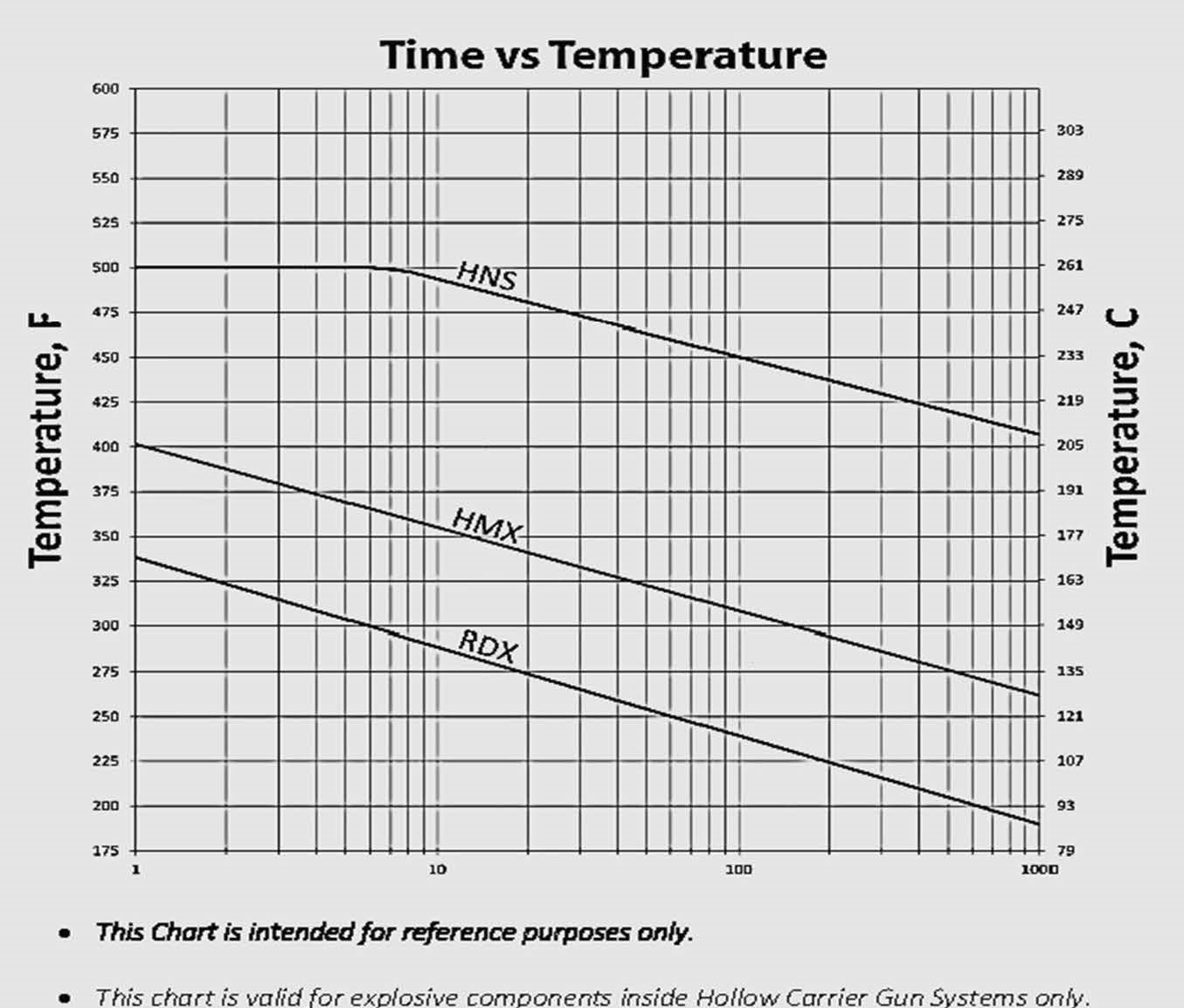

  • DURING RUNNING INTO THE WELLBORE, ACCORDING TO THE SPEED AND METHOD OF CONVEY (TCP, WL, CTP) AND THE TIME THAT THE DIFFERENT TYPES OF EXPLOSIVE EQUIPMENT ARE IN THE WELLBORE, USING THE TIME- TEMPERATURE CURVES TO SPECIFY APPROPRIATE TIME AND TEMPERATURE IS MANDATORY.
